We stock all types of lap joint pipe flanges which are ready to ship. We also pay attention over the can also manufacture custom pipe flanges according to customer specifications.

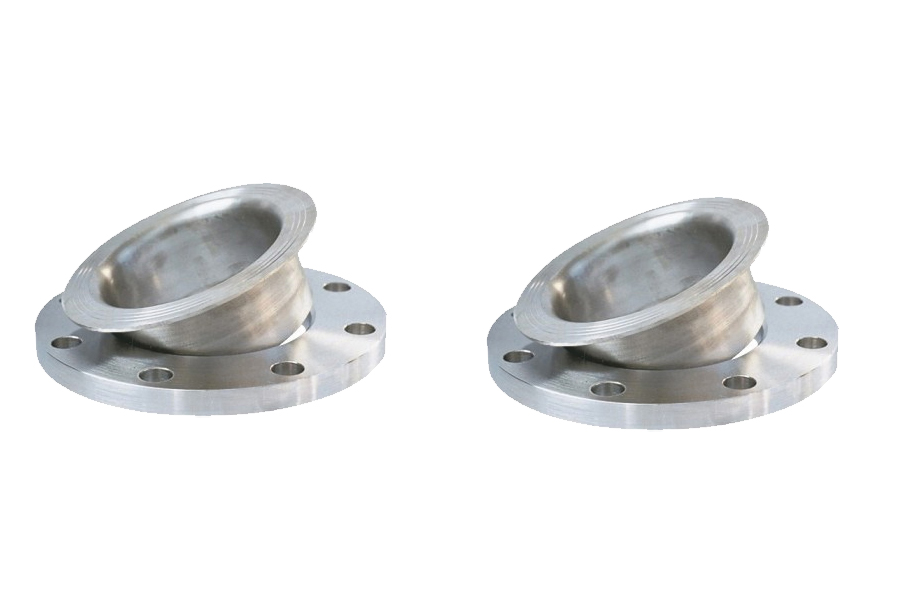

Lap joint pipe flanges are normally used with stub end fittings. It slides directly over the pipe, where a pipe is welded to the Stub End. The Lap Joint pipe flange is free to rotate around the stub end. Lap Joint pipe flanges are used for applications that need frequent dismantling.
- Stainless Steel : ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
- Duplex Steel : ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
- Carbon Steel : ASTM / ASME A 105. ASTM / ASME A 350 LF 2 .
- Alloy Steel : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
- Nickel Alloy : ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS ( 6601 INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

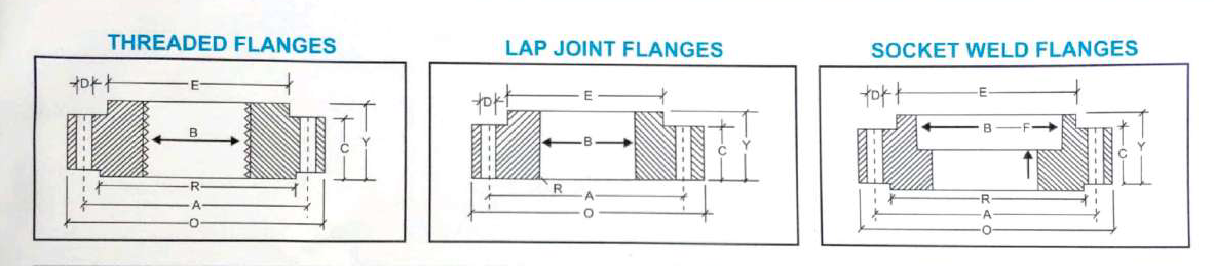

| Nominal Pipe Size | Flange Dia O |
Dia of Bolt Circle A |
Dia of Bolt Holes D |
No. of Holes | Thk of Flange C |
Dia of Hub E |
Length through Hub | Dia of Bore | Dia of R/F R |
Depth of Socket F |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/O & S/W Y |
W/N Y |
L/J Y |
S/O & S/W B |
L/J B |
|||||||||
| 15 | 95.2 | 66.7 | 15.9 | 4 | 14.3 | 38.1 | 22.2 | 52.4 | 22.3 | 22.3 | 22.8 | 34.9 | 9.5 |
| 20 | 117.5 | 82.5 | 19.0 | 4 | 15.9 | 47.6 | 25.4 | 57.1 | 25.4 | 27.7 | 28.1 | 42.9 | 11.1 |
| 25 | 123.8 | 88.9 | 19.0 | 4 | 17.5 | 54.0 | 27.0 | 61.9 | 26.9 | 34.5 | 35.0 | 50.8 | 12.7 |
| 32 | 133.3 | 98.4 | 19.0 | 4 | 20.6 | 63.5 | 28.6 | 66.7 | 28.4 | 43.2 | 43.6 | 63.5 | 14.2 |
| 40 | 155.6 | 114.3 | 22.2 | 4 | 22.2 | 69.8 | 31.7 | 69.8 | 31.7 | 49.5 | 50.0 | 73.0 | 15.8 |
| 50 | 165.1 | 127.0 | 19.0 | 8 | 25.4 | 84.1 | 36.5 | 73.0 | 36.5 | 62.0 | 62.4 | 92.1 | 17.4 |
| 65 | 190.5 | 149.2 | 22.2 | 8 | 28.6 | 100.0 | 41.3 | 79.4 | 41.1 | 74.7 | 75.4 | 104.8 | 19.0 |
| 80 | 209.5 | 168.3 | 22.2 | 8 | 31.8 | 117.5 | 46.0 | 82.5 | 45.9 | 90.7 | 91.4 | 127.0 | - |
| 100 | 273.0 | 215.9 | 25.4 | 8 | 38.1 | 152.4 | 54.0 | 101.6 | 53.8 | 116.1 | 116.8 | 157.2 | - |
| 125 | 330.2 | 266.7 | 28.6 | 8 | 44.4 | 188.9 | 60.3 | 114.3 | 60.4 | 143.8 | 141.5 | 185.7 | - |
| 150 | 355.6 | 292.1 | 28.6 | 12 | 47.6 | 222.2 | 66.7 | 117.5 | 66.5 | 170.7 | 171.4 | 215.9 | - |
| 200 | 419.1 | 349.2 | 31.7 | 12 | 55.6 | 273.0 | 76.2 | 133.3 | 76.2 | 221.5 | 222.2 | 269.9 | - |
| 250 | 508.0 | 431.8 | 34.9 | 16 | 63.5 | 342.9 | 85.7 | 152.4 | 111.2 | 276.3 | 277.3 | 323.8 | - |
| 300 | 558.8 | 488.9 | 34.9 | 20 | 66.7 | 400.0 | 92.1 | 155.6 | 117.3 | 327.1 | 328.1 | 381.0 | - |
| 350 | 603.2 | 527.0 | 38.1 | 20 | 69.9 | 431.8 | 93.7 | 165.1 | 127.0 | 359.1 | 360.1 | 412.7 | - |
| 400 | 685.8 | 603.2 | 41.3 | 20 | 76.2 | 495.3 | 106.4 | 177.8 | 139.7 | 410.5 | 411.2 | 469.9 | - |
| 450 | 742.9 | 654.0 | 44.4 | 20 | 82.6 | 546.1 | 117.5 | 184.1 | 152.4 | 461.8 | 462.2 | 533.4 | - |
| 500 | 812.8 | 723.9 | 44.4 | 24 | 88.9 | 609.6 | 127.0 | 190.5 | 165.1 | 513.1 | 514.3 | 584.2 | - |
| 600 | 939.8 | 838.2 | 50.8 | 24 | 101.6 | 717.5 | 139.7 | 203.2 | 184.1 | 615.9 | 615.9 | 692.1 | - |
