SOKCET FLANGES
SOKCET FLANGES

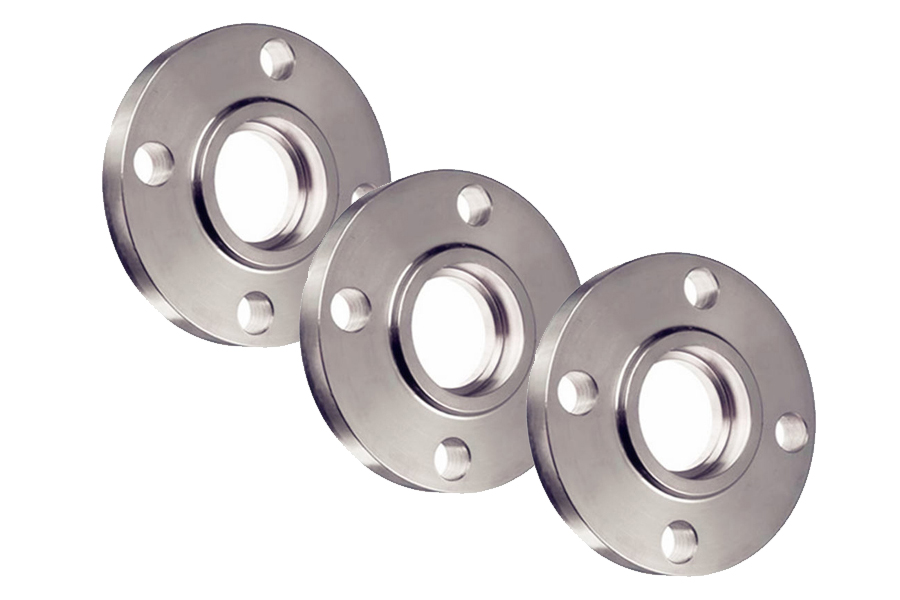

The Pipe flanges are fabricated in all the different materials like stainless steel, aluminum, brass and cast iron. But due to sturdiness it offers, the forged carbon steel is used most. We offer socket flange constructed with all these materials with varied configuration. We assure our customer about the international standard quality of socket flange.
- Stainless Steel : ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
- Duplex Steel : ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
- Carbon Steel : ASTM / ASME A 105. ASTM / ASME A 350 LF 2 .
- Alloy Steel : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
- Nickel Alloy : ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS ( 6601 INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
| Nominal Pipe Size | Flange Dia O |
Dia of Bolt Circle A |
Dia of Bolt Holes D |
No. of Holes | Thk of Flange C |
Dia of Hub E |
Length through Hub | Dia of Bore | Dia of R/F R |
Depth of Socket F |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/O & S/W Y |
W/N Y |
L/J Y |
S/O & S/W B |
L/J B |
|||||||||
| 15 | 95.2 | 66.7 | 15.9 | 4 | 14.3 | 38.1 | 22.2 | 52.4 | 22.3 | 22.3 | 22.8 | 34.9 | 9.5 |
| 20 | 117.5 | 82.5 | 19.0 | 4 | 15.9 | 47.6 | 25.4 | 57.1 | 25.4 | 27.7 | 28.1 | 42.9 | 11.1 |
| 25 | 123.8 | 88.9 | 19.0 | 4 | 17.5 | 54.0 | 27.0 | 61.9 | 26.9 | 34.5 | 35.0 | 50.8 | 12.7 |
| 32 | 133.3 | 98.4 | 19.0 | 4 | 20.6 | 63.5 | 28.6 | 66.7 | 28.4 | 43.2 | 43.6 | 63.5 | 14.2 |
| 40 | 155.6 | 114.3 | 22.2 | 4 | 22.2 | 69.8 | 31.7 | 69.8 | 31.7 | 49.5 | 50.0 | 73.0 | 15.8 |
| 50 | 165.1 | 127.0 | 19.0 | 8 | 25.4 | 84.1 | 36.5 | 73.0 | 36.5 | 62.0 | 62.4 | 92.1 | 17.4 |
| 65 | 190.5 | 149.2 | 22.2 | 8 | 28.6 | 100.0 | 41.3 | 79.4 | 41.1 | 74.7 | 75.4 | 104.8 | 19.0 |
| 80 | 209.5 | 168.3 | 22.2 | 8 | 31.8 | 117.5 | 46.0 | 82.5 | 45.9 | 90.7 | 91.4 | 127.0 | - |
| 100 | 273.0 | 215.9 | 25.4 | 8 | 38.1 | 152.4 | 54.0 | 101.6 | 53.8 | 116.1 | 116.8 | 157.2 | - |
| 125 | 330.2 | 266.7 | 28.6 | 8 | 44.4 | 188.9 | 60.3 | 114.3 | 60.4 | 143.8 | 141.5 | 185.7 | - |
| 150 | 355.6 | 292.1 | 28.6 | 12 | 47.6 | 222.2 | 66.7 | 117.5 | 66.5 | 170.7 | 171.4 | 215.9 | - |
| 200 | 419.1 | 349.2 | 31.7 | 12 | 55.6 | 273.0 | 76.2 | 133.3 | 76.2 | 221.5 | 222.2 | 269.9 | - |
| 250 | 508.0 | 431.8 | 34.9 | 16 | 63.5 | 342.9 | 85.7 | 152.4 | 111.2 | 276.3 | 277.3 | 323.8 | - |
| 300 | 558.8 | 488.9 | 34.9 | 20 | 66.7 | 400.0 | 92.1 | 155.6 | 117.3 | 327.1 | 328.1 | 381.0 | - |
| 350 | 603.2 | 527.0 | 38.1 | 20 | 69.9 | 431.8 | 93.7 | 165.1 | 127.0 | 359.1 | 360.1 | 412.7 | - |
| 400 | 685.8 | 603.2 | 41.3 | 20 | 76.2 | 495.3 | 106.4 | 177.8 | 139.7 | 410.5 | 411.2 | 469.9 | - |
| 450 | 742.9 | 654.0 | 44.4 | 20 | 82.6 | 546.1 | 117.5 | 184.1 | 152.4 | 461.8 | 462.2 | 533.4 | - |
| 500 | 812.8 | 723.9 | 44.4 | 24 | 88.9 | 609.6 | 127.0 | 190.5 | 165.1 | 513.1 | 514.3 | 584.2 | - |
| 600 | 939.8 | 838.2 | 50.8 | 24 | 101.6 | 717.5 | 139.7 | 203.2 | 184.1 | 615.9 | 615.9 | 692.1 | - |
